3IN1 Two Stages Die-Face Cutting Recycling & Pelletizing Machine

3IN1 Two Stages Die-Face Cutting Recycling & Pelletizing Machine

plastic recycling machine,plastic granulator,plastic waste recycling machine
02-2-die-face-cutting-recycling-pelletizing-machine
02-1-die-face-cutting-recycling-pelletizing-machine
02-1-004
plastic recycling machine,plastic granulator,plastic waste recycling machine
Gallery
manual open device for shredder tank when it comes power cut
The large opening design of the cutter compactor allows for easy blade replacement and maintenance. It is equipped with safety devices, prioritizing safety as the top concern.
plastic granulator-sub extruder conducts second time filtering and ventilating for dirtier materials
Sub extruder conducts second time filtering and ventilating for dirtier materials.
die-face cutting knife has no need to do frequent adjustment
Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently.
high speed dryer is soundproof with double layer sealing design
High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.
shredder sight window with window wiper help operator to observe at anytime
Shredder sight window with window wiper help operator to observe at anytime.
plastic granulator,the main extruder provides the best feeding,mixing,ventilation,heating,capacity,customization
The main extruder provides the best feeding, mixing, ventilation, heating and capacity as it is designed way based on customer's raw material, capacity, and compounding degree.
Unlike other screen changers on the market, GEORDING's unique internal sealing ring design prevents material leakage and makes maintenance easy.
Unlike other screen changers on the market, GEORDING's unique internal sealing ring design prevents material leakage and makes maintenance easy.
An optional nip roll feeder can be added to meet specific needs, helping with the feeding of roll-type materials.
An optional nip roll feeder can be added to meet specific needs, helping with the feeding of roll-type materials.
the triple layers vibrating screener is easy to clean,disassemble and assemble
The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.
blower with noiseless design
Blower with noiseless design.
Features
plastic waste recycling machine suitable for pe waste-agricultural films,ps,eps,ops styrofoam container

INTEGRATES SHREDDING, EXTRUDING AND PELLETIZING INTO ONE MACHINE

  • The integrated cutter helps compact the material to reduce its volume and increase its density. This process aids in preheating, mixing, and drying the material, preparing it for further processing and recycling.
  • High productivity, low noise.
  • Preheating the raw material can enhance the production efficiency of the extruder. Compared to traditional crusher , it produces less noise and has a capacity that exceeds traditional models by more than double.
  • Integrating multiple functions into one machine simplifies maintenance and upkeep by centralizing these tasks. It also saves space within the factory layout.
  • Two stages extruder with ventilation holes, providing three stages of venting.This is a standard feature of GEORDING. The design of the ventilation holes helps to prevent the formation of bubbles or excessive internal pressure during the extrusion process, thereby improving product quality.
  • Two stages extruder offers higher filtration efficiency.Ｗith two-stage filtering process. This effectively removes impurities from the raw material, reducing contaminants, thereby improving the quality and consistency of the final product. Additionally, it helps minimize wear and blockage in the extruder, extending the extruder lifetime.

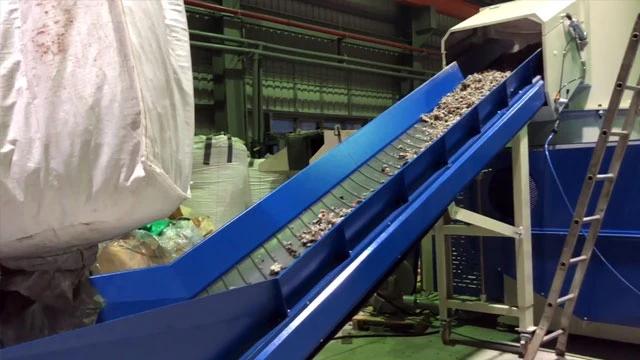

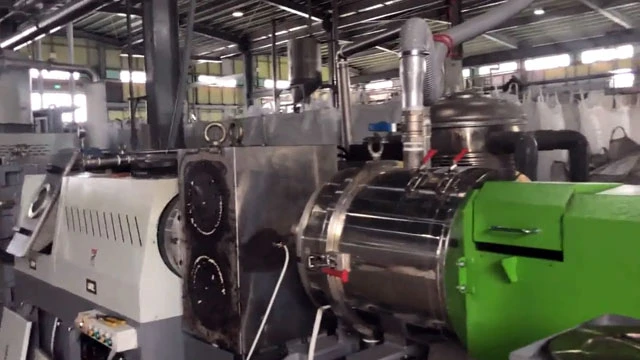

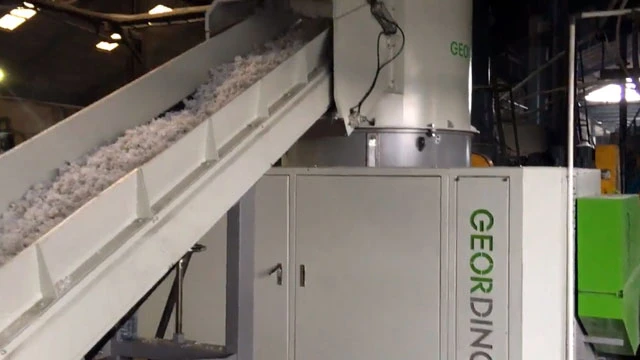

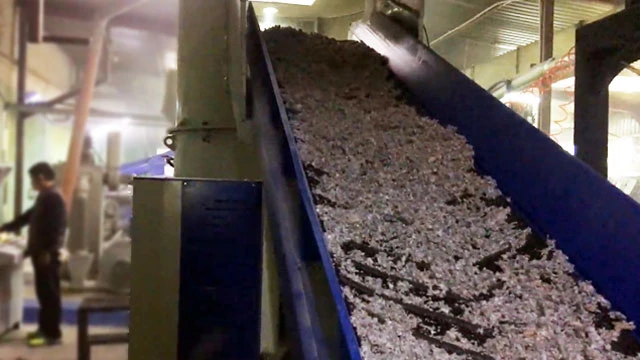

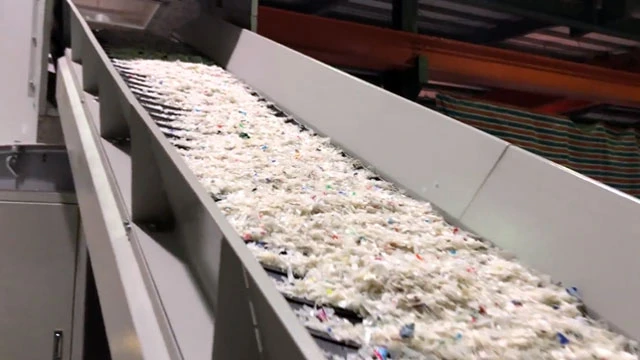

Media

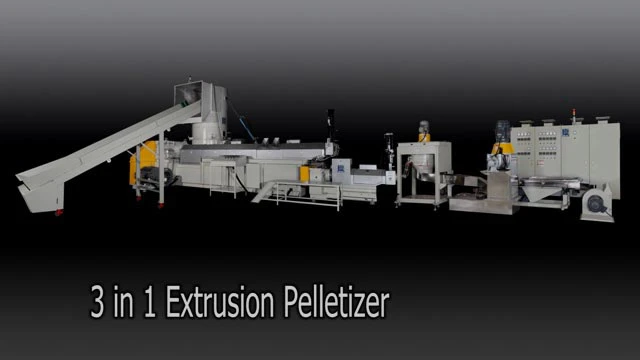

3IN1 Two Stages Die-Face Cutting Recycling & Pelletizing Machine

Recycling Materials

pe-agricultural-films granules-pe-agricultural-films
PE Agricultural Films
pe-ldpe-hdpe-film pe-ldpe-hdpe-film-granules
PE, LDPE, HDPE Film
Specification
Model GD-85TS-3IN1 GD-100TS-3IN1 GD-120TS-3IN1 GD-150TS-3IN1 GD-175TS-3IN1
Shredder
Conveyor 1HP*4000(L)*400(W) 2HP*6000(L)*600(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W)
Size Ø760 mm Ø1000 mm Ø1000~1500 mm Ø1000~1800 mm Ø1000~2000 mm
Motor 40HP 75HP 100HP 125HP 150HP
Main Extruder
Screw Diameter L/D Ratio 32 36 36 36 36
Main Power 50~75HP 125~150HP 150~250HP 200~400HP 300~600HP
Temp. Control 6 zone 6 zone 7 zone 8 zone 8 zone
Heating Capacity 35KW 42KW 65KW 90KW 120KW
Hydraulic Power 3HP 5HP 5HP 7.5HP 7.5HP
Max. Outpou/Hr 100~250kg 250~500kg 400~800kg 800~1500kg 1000~1800kg
Sub-extruder
Screw Diameter L/D Ratio 8~10 8~10 8~10 8~10 8~10
Power 20~40HP 40~50HP 40~60HP 60~100HP 60~150HP
Temp. Control 3 zones 4 zones 5 zonesP 6 zones 6 zones
Heating Capacity 18KW 22KW 25KW 37KW 58KW
Die Face Cutter
Power 2HP 3HP 3HP 5HP 7.5HP
Separator
Power 10HP 10HP 10HP 15HP 20HP
Vibration Motor
Motor 1/4HP*2 1/4HP*2 1/4HP*2 1/4HP*2 1/2HP*2
Blower
Power 5HP 5HP 7.5HP 7.5HP 10HP
Storage Barrel
Capacity 1000L 1000L 1000L 1000L 1000L

﹡The product line can be made to spec meeting customer needs.
﹡Equipment specifications are also constanly updated. You are welcomed to contact us for details.
