3IN1 Single Stage Die-Face Cutting Recycling & Pelletizing Machine

3IN1 Single Stage Die-Face Cutting Recycling & Pelletizing Machine

gd-85-3in1-1
gd-85-3in1-02
plastic waste recycling machine
plastic waste recycling machine
plastic waste recycling machine
Gallery
plastic waste recycling machine main extruder is designed way based on customers raw material, capacity, and compounding degree
The main extruder provides the best feeding, mixing, ventilation, heating and capacity as it is designed way based on customer's raw material, capacity, and compounding degree.
die-face cutting knife has no need to do frequent adjustment,the knife and die plate always set as 90 degrees
Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently.
high speed dryer is soundproof with double layer sealing design
High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.
the triple layers vibrating can customize the diameter of the hole
The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.
shredder sight window with window wiper help operator to observe
Shredder sight window with window wiper help operator to observe at anytime.
manual open device for shredder tank
Manual open device for shredder tank when it comes power cut.
water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer
Water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer.
the cyclone gathers the pellets
The cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener.
blower with noiseless design
Blower with noiseless design.
Features
plastic recycling machine suitable for film-bags-bottle scraps

INTEGRATES SHREDDING, EXTRUDING AND PELLETIZING INTO

  • Smash and mix well, heat, dry.
  • High productivity, low noise.
  • Easy operation and low labor cost.
  • Suitable for film, bags, bottle scraps, etc
Media

3IN1 Single Stage Die-Face Cutting Recycling & Pelletizing Machine

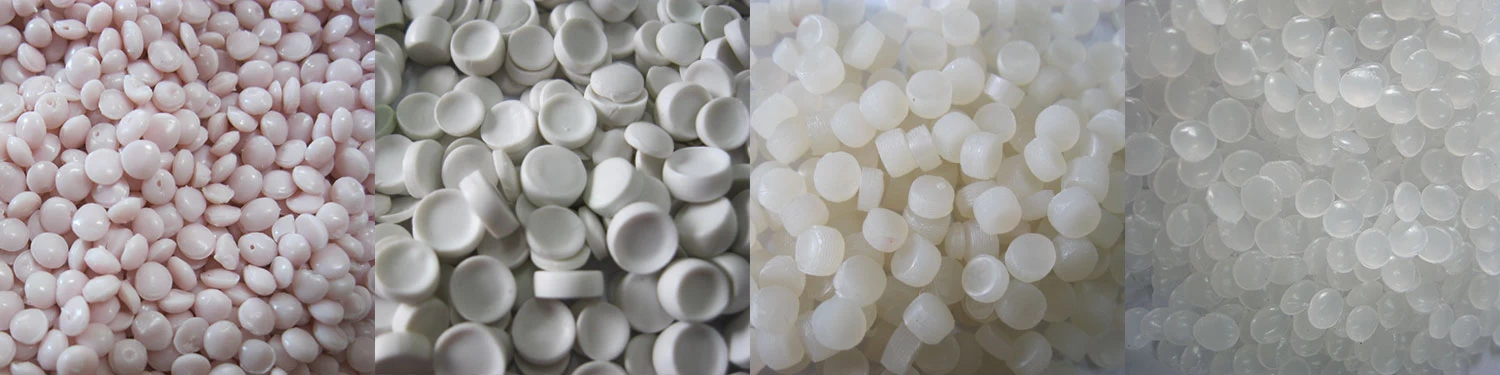

Recycling Materials

ps-hips pellets_PSEPSOPSStyrofoamcontainer_geording
PS, HIPS
epe-pe-foam pellets_PSEPSOPSStyrofoamcontainer_geording
EPE , PE Foam
pe-ldpe-hdpe-film pe-ldpe-hdpe-film-granules
PE, LDPE, HDPE Film
hdpe-milk-bottle-chips HDPEmilkbottle_pellets_geording_recyclingmachinemanufacturer
HDPE Milk Bottle Chips
Specification
Model GD-85-3IN1 GD-100-3IN1 GD-120-3IN1 GD-150-3IN1 GD-175-3IN1
Shredder
Conveyor 1HP*4000(L)*400(W) 2HP*6000(L)*600(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W)
Size Ø760 mm Ø1000 mm Ø1000~1500 mm Ø1000~1800 mm Ø1000~2000 mm
Motor 40HP 75HP 100HP 150HP 150HP
Main Extruder
Screw Diameter L/D Ratio 32 36 36 36 36
Main Power 50~75HP 125~150HP 150~200HP 200~350HP 250~600HP
Temp. Control 7 zone 8 zone 9 zone 9 zone 11 zone
Heating Capacity 36KW 40KW 60KW 115KW 140KW
Hydraulic Power 3HP 5HP 5HP 7.5HP 7.5HP
Max. Outpou/Hr 120~280kg 300~500kg 400~800kg 800~1500kg 1000~1800kg
Die Face Cutter
Power 2HP 3HP 3HP 5HP 7.5HP
Separator
Power 10HP 10HP 10HP 15HP 20HP
Vibration Motor
Motor 1/4HP*2 1/4HP*2 1/4HP*2 1/4HP*2 1/2HP*2
Blower
Power 5HP 5HP 7.5HP 7.5HP 10HP
Storage Barrel
Capacity 1000L 1000L 1000L 1000L 1000L

﹡The product line can be made to spec meeting customer needs.
﹡Equipment specifications are also constanly updated. You are welcomed to contact us for details.
