3IN1 Two Stages Spaghetti Cutting Recycling & Pelletizing Machine

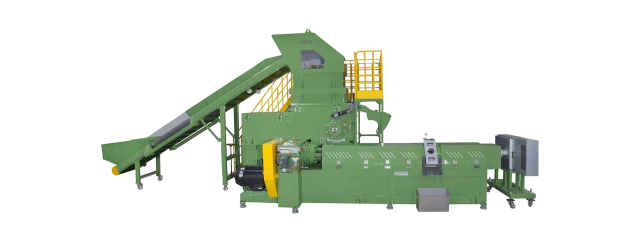

3IN1 Two Stages Spaghetti Cutting Recycling & Pelletizing Machine

plastic waste recycling machine
plastic waste recycling machine
plastic waste recycling machine
Gallery
shredder sight window with window wiper help operator to observe
Shredder sight window with window wiper help operator to observe at anytime.
pellet machine,main extruder,mixing,ventilation,heating,capacity as it is designed way based on customer's raw material, capacity, and compounding degree
The main extruder provides the best feeding, mixing, ventilation, heating and capacity as it is designed way based on customer's raw material, capacity, and compounding degree.
pellet machine,sub extruder conducts 2nd filtering and ventilating for dirtier materials
Sub extruder conducts second time filtering and ventilating for dirtier materials.
user-friendly spaghetti cutting system is suitable for high melting index material
User-friendly spaghetti cutting system is suitable for high melting index material.
blower with noiseless design
Blower with noiseless design.
manual open device for shredder tank when it comes power cut
Manual open device for shredder tank when it comes power cut.
Features
plastic recycling machine suitable for pp, crushing pp bag, opp, bopp film

High torsion, low-noice; temp. controls stability; double degassing

  • Suitable for a variety of raw materials.
  • Easy to operate; prority transcends traditional model.
  • Low labor cost.
  • Optional equipment- crusher and mixer, enables every batch of material to mix well.
  • Two stages filter makes material more clean
Media

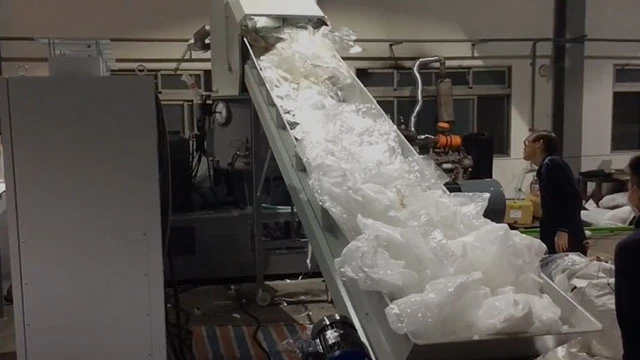

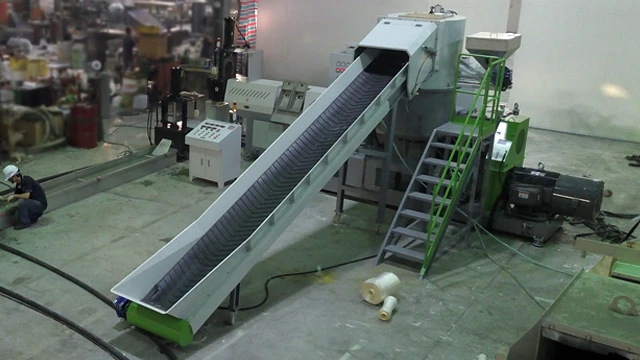

3IN1 Two Stages Spaghetti Cutting Recycling & Pelletizing Machine

Recycling Materials

pp-napkin-mi6 pp-napkin-granules
PP Napkin (MI6)
pp-bopp-opp pp pellets-bopp pellets-opp pellets
PP, BOPP, OPP
bopp-film pp pellets-bopp pellets-opp pellets
BOPP Film
Specification
Model GD-85TS-3IN1 GD-100TS-3IN1 GD-120TS-3IN1 GD-150TS-3IN1 GD-175TS-3IN1
Shredder
Conveyor 1HP*4000(L)*400(W) 2HP*6000(L)*600(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W) 2HP*6000(L)*800(W)
Size Ø760 mm Ø1000 mm Ø1000~1500 mm Ø1000~1800 mm Ø1000~2000 mm
Motor 40HP 75HP 100HP 125HP 150HP
Main Extruder
Screw Diameter L/D Ratio 32 36 36 36 36
Main Power 50~75HP 125~150HP 150~250HP 200~400HP 300~600HP
Temp. Control 7 zone 8 zone 9 zone 10 zone 11 zone
Heating Capacity 36KW 40KW 115KW 120KW 150KW
Hydraulic Power 3HP 3HP 3HP 5HP 5HP
Max. Outpou/Hr 100~250kg 250~500kg 400~800kg 800~1500kg 1000~1800kg
Sub-extruder
Screw Diameter L/D Ratio 8~10 8~10 8~10 8~10 8~10
Power 20~40HP 40~50HP 50~100HP 60~125HP 100~150HP
Temp. Control 3 zone 4 zone 5 zone 6 zone 6 zone
Heating Capacity 18KW 22KW 25KW 37KW 58KW
Cooling tunnel
Size(mm) 3050*280*250 3050*280*250 4500*500*250 5000*500*250 5000*500*250
Pellet cutter
Power 3HP 5HP 5HP 7.5HP 10HP
Blower
Power 3HP 5HP 5HP 7.5HP 10HP
Storage Barrel
Capacity 1000L 1000L 1000L 1000L 1000L

﹡The product line can be made to spec meeting customer needs.
﹡Equipment specifications are also constanly updated. You are welcomed to contact us for details.
