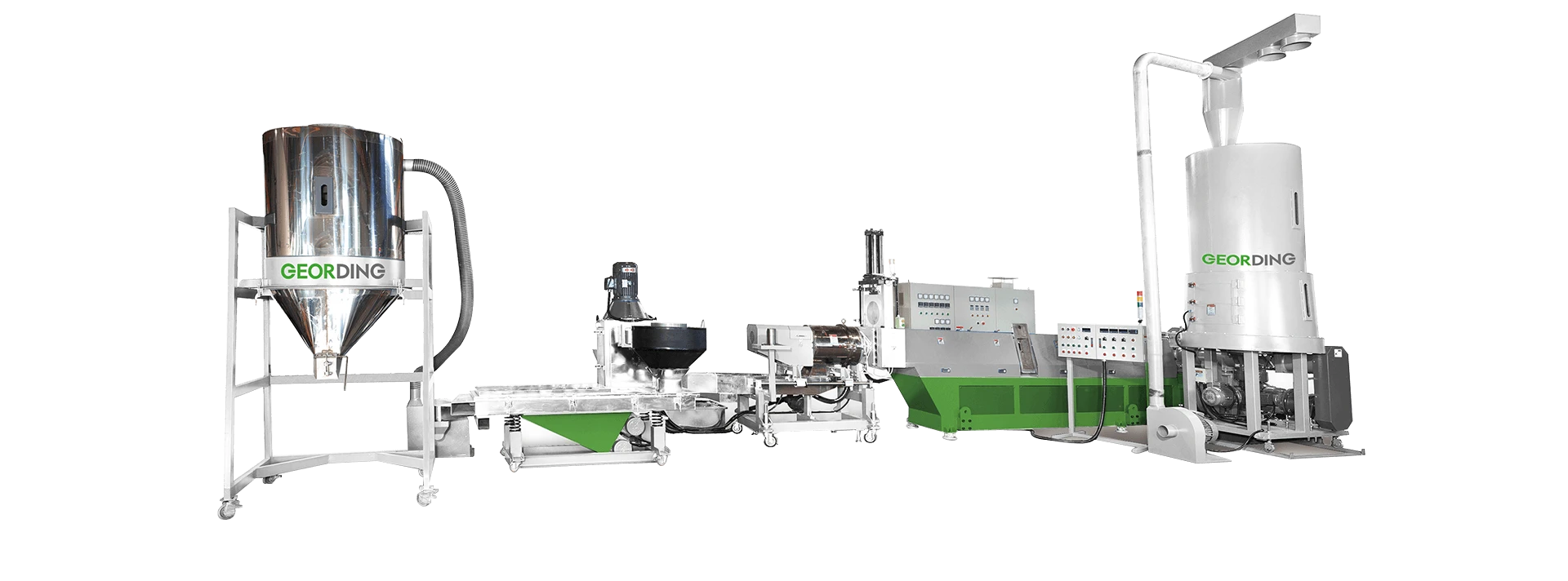

Side Entrance Single Stage Die-Face Cutting Recycling& Pelletizing Machine

plastic recycling machine
plastic recycling machine
Gallery

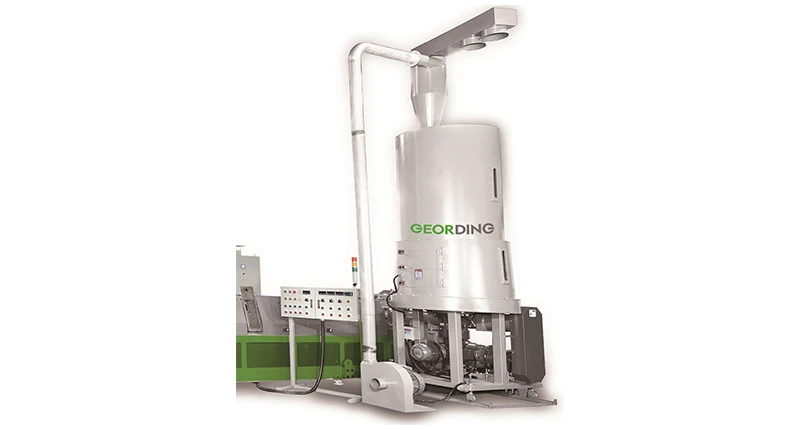

plastic granulator with Side feeding barrel is better for storage and steady material input at same time
Side feeding barrel is better for storage and steady material input at same time.

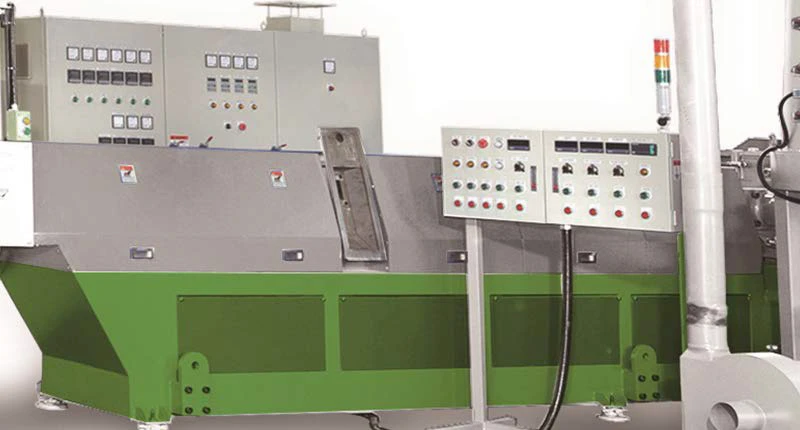

plastic granulator main Extruder can extrude the material whose moisture below 7%
Main Extruder can extrude the material whose moisture below 7%.

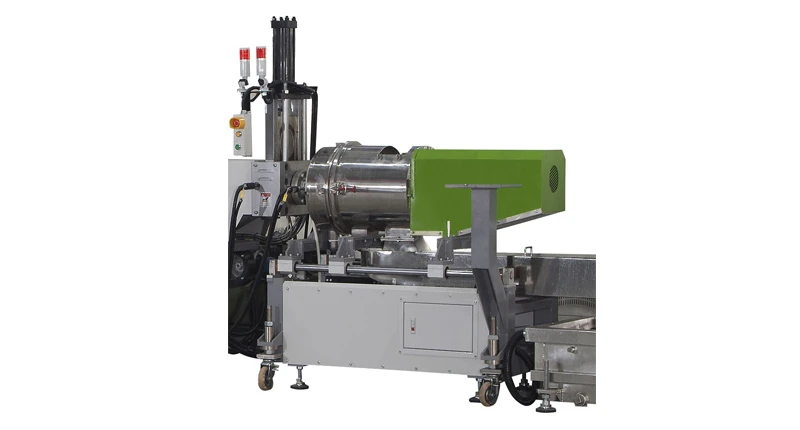

Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently
Die face cutting frame made in SUS304 to prevent the rust and corrosion. Knives adjustments automaticlly patent design.The knife and die plate always set at 90 degree. No need to adjust frequently.

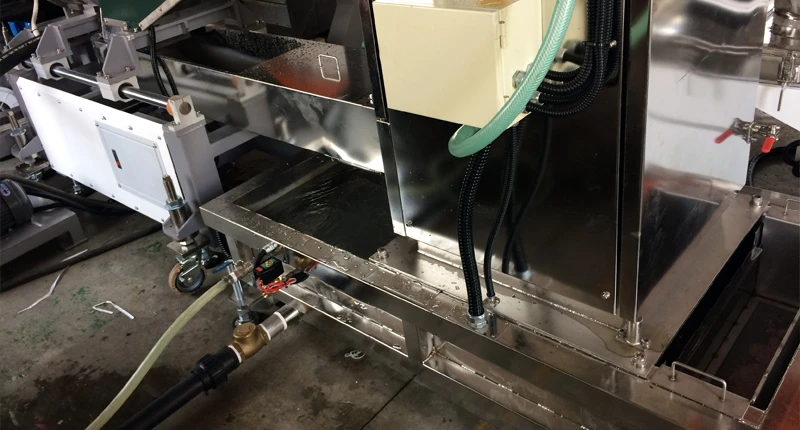

high speed dryer is soundproof with double layer sealing design
High speed dryer is soundproof with double layer sealing design. The underneath water tank can gather the waste water and filter the impurity.

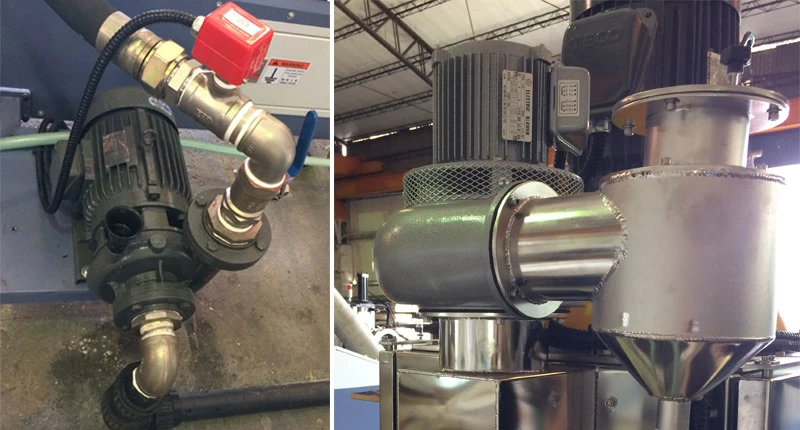

plastic granulator with water circulation pump
Water circulation pump collects the waste water and the water vapour from pelletization and high speed dryer.

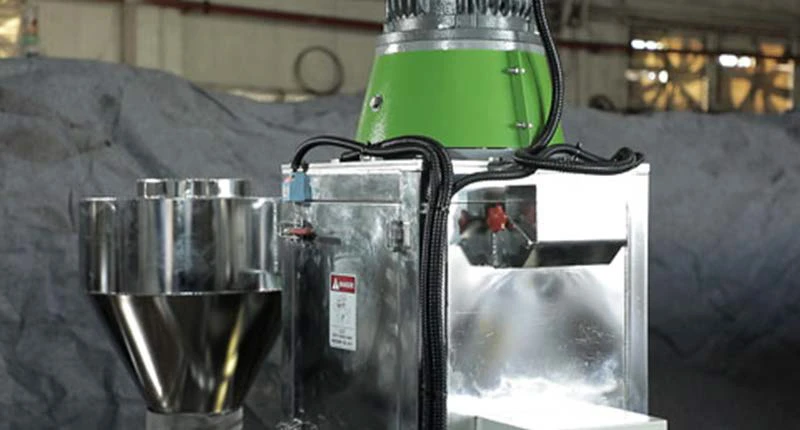

the cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener
The cyclone gathers the pellets and reduces the impact after high speed dryer prior to next vibrating screener.

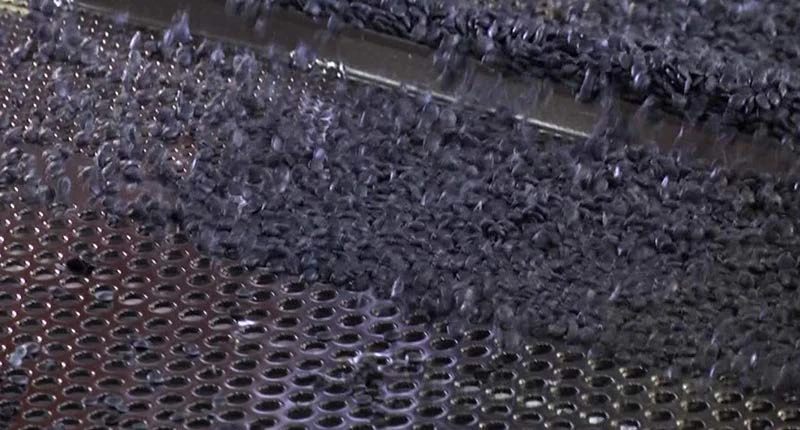

the triple layers vibrating screener is easy to clean, disassemble and assemble
The triple layers vibrating screener is easy to clean, disassemble and assemble. Can customize the diameter of the hole.
blower with noiseless design
Blower with noiseless design.
Features
plastic recycling machine suitable for pe, ldpe, hdpe film

Big material storage barrel sustains stability during material input.

  • User-friendly machine enables to reach high productivity standards.
  • Product below 7% moisture is suitable for extruding.
  • Applicable to lightweight materials..
  • Crusher is optional.
  • Low labor cost.
Media

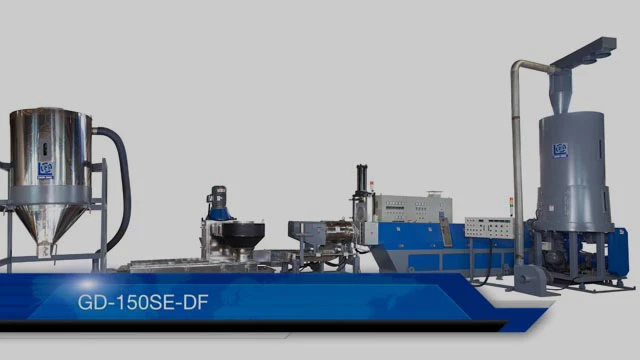

Side Entrance Single Stage Die-Face Cutting Recycling& Pelletizing Machine

Recycling Materials

pe-ldpe-hdpe-film pe-ldpe-hdpe-film-granules
PE, LDPE, HDPE Film
Specification
Model GD-85SE-DF GD-100SE-DF GD-120SE-DF GD-150SE-DF GD-175SE-DF
Main Extruder
Screw Diameter L/D Ratio 32 36 36 36 36
Main Power 40~60HP 50~100HP 100~150HP 150~200HP 200~300HP
Temp. Control 5 zones 7 zones 8 zones 9 zones 10 zones
Heating Capacity 35KW 50KW 70KW 85KW 150KW
Side Entrance Power 5HP 10HP 10HP 15HP 15HP
Storage Barrel Capacity 1500L 2500L 2500L 2500L 2500L
Storage Barrel Power 5HP 5HP 5HP 7.5HP 7.5HP
Hydraulic Power 3HP 5HP 5HP 7.5HP 7.5HP
Max. Outpou/Hr 120~180kg 250~400kg 300~450kg 450~600kg 700~1000kg
Die Face Cutter
Power 2HP 3HP 3HP 5HP 7.5HP
Separator
Power 10HP 10HP 10HP 15HP 20HP
Vibration Motor
Motor 1/4HP*2 1/4HP*2 1/4HP*2 1/4HP*2 1/2HP*2
Blower
Power 3HP 5HP 5HP 7.5HP 10HP
Storage Barrel
Capacity 1000L 1000L 1000L 1000L 1000L

﹡The product line can be made to spec meeting customer needs.
﹡Equipment specifications are also constanly updated. You are welcomed to contact us for details.
